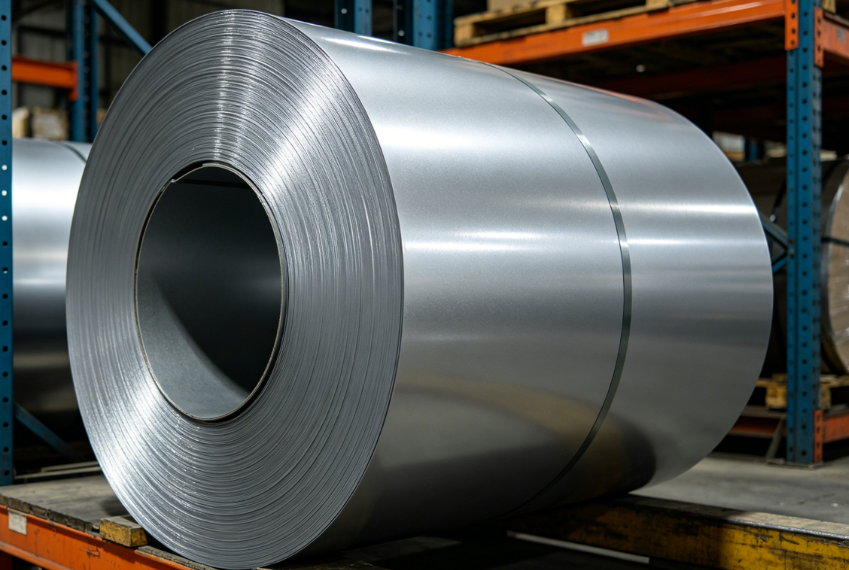

Pre-painted steel coils—commonly known as PPGI (Pre-Painted Galvanized Iron) and PPGL (Pre-Painted Galvalume)—are everywhere in modern construction. From warehouse roofing to appliance housings, these color-coated coils combine the strength of steel with the corrosion resistance of metallic coatings and the aesthetic appeal of paint. But choosing between PPGI and PPGL isn’t always straightforward. At Yihang Metal, we supply both types to buyers across the globe, and we’ve seen how the right choice can extend service life by decades—while the wrong one leads to premature failure.
PPGI vs PPGL: What’s the Difference?
The distinction comes down to the metallic coating underneath the paint layer:
PPGI (Pre-Painted Galvanized Iron): The base steel is coated with zinc through a hot-dip galvanizing process, then painted. The zinc coating is essentially pure zinc, with a small amount of aluminum (typically 0.2–0.5%) added to improve adhesion and uniformity.
PPGL (Pre-Painted Galvalume): The base steel is coated with a zinc-aluminum alloy—typically 55% aluminum, 43.4% zinc, and 1.6% silicon—before painting. This alloy coating, commonly known as Galvalume or Zincalume, was developed to combine the sacrificial protection of zinc with the barrier protection of aluminum.
Both products then receive a multi-layer paint system: primer, topcoat (in the desired color), and often a back-side protective coating. The paint system can be polyester (PE), silicon-modified polyester (SMP), high-durability polyester (HDP), or polyvinylidene fluoride (PVDF), depending on the performance requirements.
Corrosion Resistance: The Core Difference
This is where PPGL really distinguishes itself. The 55% aluminum content in the Galvalume coating forms a dense, tightly adherent aluminum oxide layer that acts as an excellent barrier against moisture and corrosive elements. The zinc component provides sacrificial (galvanic) protection at cut edges and scratches.
In standardized salt spray testing (ASTM B117), Galvalume-coated steel typically lasts 2–4 times longer than galvanized steel of the same coating thickness before red rust appears. In real-world outdoor exposure, PPGL roofing panels routinely outlast PPGI panels by 50–100% in the same environment.
However, there’s an important caveat: in highly alkaline environments (pH above 9), aluminum corrodes more rapidly than zinc. For applications involving contact with fresh concrete, certain industrial chemicals, or alkaline soils, PPGI may actually perform better than PPGL. This is a nuance that many buyers overlook.
Coating Weight Designations
Both PPGI and PPGL are specified by their metallic coating weight before painting. Common designations include:
For PPGI (zinc coating):
• Z60–Z275: 60–275 g/m² of zinc (total both sides)
• G40–G90: ASTM designations (0.40–0.90 oz/ft²)
• Most common: Z120–Z180 (G60–G90 equivalent)
For PPGL (Galvalume coating):
• AZ50–AZ150: 50–150 g/m² of aluminum-zinc alloy (total both sides)
• Most common: AZ100–AZ150
Note that AZ150 provides roughly equivalent corrosion protection to Z275, despite being a lighter coating weight—that’s the advantage of the aluminum-zinc alloy.
Heat Resistance and Thermal Performance
PPGL has a distinct advantage in high-temperature applications. The Galvalume coating can withstand continuous service temperatures up to 315°C (600°F) without significant degradation, compared to about 200°C (390°F) for galvanized coatings. This makes PPGL the preferred choice for:
• Oven and appliance components
• Chimney and flue systems
• Industrial ducting exposed to heat
• Roofing in extremely hot climates
Additionally, PPGL’s higher thermal reflectivity means it reflects more solar radiation than PPGI. Light-colored PPGL roofing can reduce cooling loads by 10–20% compared to darker PPGI roofing, making it popular in tropical and subtropical regions.
Formability and Fabrication
Both PPGI and PPGL can be roll-formed, bent, and profiled into roofing sheets, wall panels, and other shapes. However, there are differences:
PPGI: Generally offers slightly better formability for tight-radius bends. The zinc coating is more ductile than the aluminum-zinc alloy, meaning it’s less likely to micro-crack during severe forming. For complex profiles with sharp bends, PPGI is often the safer choice.
PPGL: Can be formed into standard roofing and cladding profiles without issues, but very tight bends (radius less than 2x material thickness) may cause micro-cracking in the coating. For most commercial roll-forming operations, this isn’t a problem—standard corrugated and trapezoidal profiles form perfectly well in PPGL.
Both products require care during fabrication to avoid damaging the paint surface. Cut edges should be protected (with touch-up paint or by orienting edges away from prevailing weather), and forming tools should be clean and free of burrs.
Paint Systems: The Other Half of the Equation
The metallic coating is only half the story. The paint system determines UV resistance, color retention, and overall appearance over time:
Polyester (PE): The most economical option. Good color range and gloss. Suitable for interior applications and mild outdoor exposure. Typical service life: 5–10 years outdoors.
Silicon-Modified Polyester (SMP): Better UV resistance and chalk resistance than standard PE. Good for exterior building products. Typical service life: 10–15 years.
High-Durability Polyester (HDP): Enhanced resin system with superior color retention and chalk resistance. Suitable for demanding exterior applications. Typical service life: 15–20 years.
PVDF (Polyvinylidene Fluoride): The premium option. Exceptional UV resistance, color retention, and chemical resistance. Used for high-end architectural applications where appearance must last decades. Typical service life: 20–30+ years.
The paint system choice should match the expected service life of the metallic coating. There’s no point putting a 30-year PVDF paint on a light zinc coating that will corrode through in 10 years. Conversely, a premium PPGL substrate deserves a paint system that won’t chalk and fade while the metal underneath is still going strong.
Cost Comparison
PPGL typically costs 5–15% more than PPGI for the same substrate thickness and paint system. The premium comes from the more expensive aluminum-zinc alloy coating. Whether this premium is justified depends on the application:
• For temporary structures or short-life applications (under 10 years), PPGI is usually the more cost-effective choice.
• For long-life building envelopes, roofing, and cladding (20+ years expected life), PPGL’s premium is almost always justified.
• For coastal or high-corrosion environments, PPGL’s superior corrosion resistance makes it the clear winner regardless of planned service life.
Application Recommendations
Based on our experience supplying both products to construction and manufacturing buyers worldwide:
Choose PPGI when:
• The application is indoors or in mild environments
• Budget is the primary constraint
• You need maximum formability for complex profiles
• The expected service life is under 10–15 years
• The environment is alkaline (concrete contact, certain industrial settings)
• You’re producing consumer goods or appliances with moderate life expectations
Choose PPGL when:
• The application is outdoor and exposed to weather
• You’re in a coastal, marine, or high-humidity environment
• Long service life is required (20+ years)
• High-temperature resistance is needed
• Thermal reflectivity matters (hot climates)
• The cost of premature replacement is high (difficult access, disruption to operations)
Common Applications
PPGI typical uses:
• Interior wall panels and partitions
• Ceiling systems
• Household appliances (washing machines, refrigerators, water heaters)
• Garage doors (inland areas)
• Office furniture and shelving
• Automotive interior components
• Temporary buildings and storage sheds
PPGL typical uses:
• Industrial and commercial roofing
• Exterior wall cladding and facades
• Warehouse and factory buildings
• Agricultural buildings (poultry houses, barns)
• Cold storage facilities
• Airport terminals and railway stations
• Solar panel mounting structures
• Highway noise barriers
Edge Protection and Cut Edge Corrosion
One area where PPGI has a subtle advantage is cut-edge protection. Because zinc provides purely sacrificial protection, a cut edge on PPGI will see the zinc corrode preferentially, protecting the exposed steel. The zinc “heals” the cut edge.
With PPGL, the higher aluminum content means less sacrificial protection at cut edges. While the aluminum oxide barrier protects the flat surfaces exceptionally well, cut edges can be more vulnerable. This is why PPGL installation best practices emphasize:
• Orienting cut edges away from prevailing weather
• Using touch-up paint or zinc-rich primers on exposed cut edges
• Designing flashings and overlaps to shield cut edges
• Avoiding field cutting where possible (factory-cut edges are more uniform)
For applications with many exposed cut edges (complex flashing details, numerous penetrations), PPGI may actually perform better at the edges—even if PPGL outperforms it on the flat surfaces.
Real-World Example
A logistics company in Malaysia built two identical warehouses two years apart. The first used PPGI roofing with a standard polyester paint system. The second, on our recommendation, used PPGL with an SMP paint system. Both are located within 5 km of the coast.
After five years, the PPGI roof showed visible edge corrosion at the sheet laps and around fastener holes. The color had faded noticeably, with chalky residue that could be wiped off by hand. The PPGL roof, now three years old, showed no edge corrosion and minimal color change. The company has since standardized on PPGL for all new construction, calculating that the 12% material premium saves them from a re-roofing project at year 10–12 that would cost far more than the initial savings.
Quality Inspection Checklist
When sourcing PPGI or PPGL coils, here’s what to check:
• Coating weight: Verify the metallic coating weight with a coating thickness gauge. Under-spec coating is one of the most common quality issues.
• Paint thickness: Total dry film thickness (primer + topcoat) should typically be 20–25 microns for PE, 25–30 microns for SMP/PVDF.
• Paint adhesion: A simple cross-hatch tape test (ISO 2409) should show no more than 5% paint removal.
• Pencil hardness: Minimum HB–F for PE, F–H for SMP/PVDF.
• T-bend test: The paint should not crack when bent around a mandrel of specified diameter (typically 2T–3T for PE, 3T–4T for PVDF).
• Color consistency: Check against the RAL or custom color standard under standardized lighting (D65).
• Surface quality: No bubbles, pinholes, dirt inclusions, or uneven gloss.
Global Standards Reference
| Standard | PPGI | PPGL |
|---|---|---|
| ASTM | A755/A755M | A755/A755M (covers both) |
| EN (Europe) | EN 10169 | EN 10169 (covers both) |
| JIS (Japan) | JIS G 3312 | JIS G 3318 |
| GB (China) | GB/T 12754 | GB/T 12754 (covers both) |
| ISO | ISO 9364 | ISO 9364 (covers both) |
The Bottom Line
PPGI and PPGL both have their place in modern construction and manufacturing. PPGI offers excellent formability, good corrosion resistance, and a lower price point—making it ideal for indoor applications, consumer goods, and projects with moderate life expectations. PPGL delivers superior corrosion resistance, better heat performance, and longer service life—justifying its premium for outdoor building envelopes, coastal environments, and any application where replacement would be costly or disruptive.
The key is matching the product to the application, not just comparing price per ton. At Yihang Metal, we help buyers make this match every day. If you’re planning a project that involves pre-painted steel, reach out to discuss your specific requirements—we’ll help you get the right product, not just the cheapest one.
