Galvanized Steel Pipe Buying Guide: ASTM A53, BS 1387 & EN 10255 — How to Specify GI Pipe for Water, Gas, and Structural Use
Galvanized steel pipe (GI pipe) carries drinking water, gas, fire protection, and scaffolding loads on nearly every jobsite. The zinc coating is the only thing between the steel and rust — so the pipe standard, wall schedule, coating mass, and end finish decide whether the line holds pressure for decades or leaks at the threads within years. Order the wrong class and the threads tear, the coating flakes at the weld, or the inspector rejects the whole container.
This guide compares the pipe standards buyers quote, pre-galvanized vs hot-dip pipe, threads and fittings, and a complete RFQ checklist.
Pipe Standards Compared
| Standard | Region | Grades / Classes | Best For |
|---|---|---|---|
| ASTM A53 | USA / global | Gr A / B; Type E (ERW), S (seamless) | Water, gas, mechanical, structural |
| BS 1387 / EN 10255 | UK / EU / Middle East | Light / Medium / Heavy | Plumbing, fire fighting, HVAC |
| ASTM A795 | USA | Fire protection grades | Sprinkler systems (FM/UL) |
| GB/T 3091 | China | Q195–Q355 welded pipe | Domestic and export general use |
Pre-Galvanized vs Hot-Dip Galvanized Pipe
| Aspect | Pre-galvanized | Hot-dip galvanized |
|---|---|---|
| How made | Welded from zinc-coated strip | Black pipe dipped in molten zinc |
| Coating | Thin, even (Z60–Z120) | Thick, spangled (Z275+) |
| Weld seam cover | Good (coated before forming) | Good (coated after) |
| Thread area | Zinc on threads | Threads cut after dipping — touch up needed |
| Cost | Lower | Higher |
| Use | Indoor, fencing, light duty | Water, outdoor, buried, marine air |
For pressure water lines and outdoor service, specify hot-dip galvanized; pre-galvanized suits indoor, fencing, and greenhouse duty.
Wall Classes and Schedules
- EN 10255 Light / Medium / Heavy: wall steps for the same OD — Heavy for gas and high pressure.
- ASTM Sch 40 / Sch 80: schedule wall; Sch 40 is the plumbing default, Sch 80 for high pressure.
- Always state OD × wall, not just DN — the same DN maps to different walls across standards.

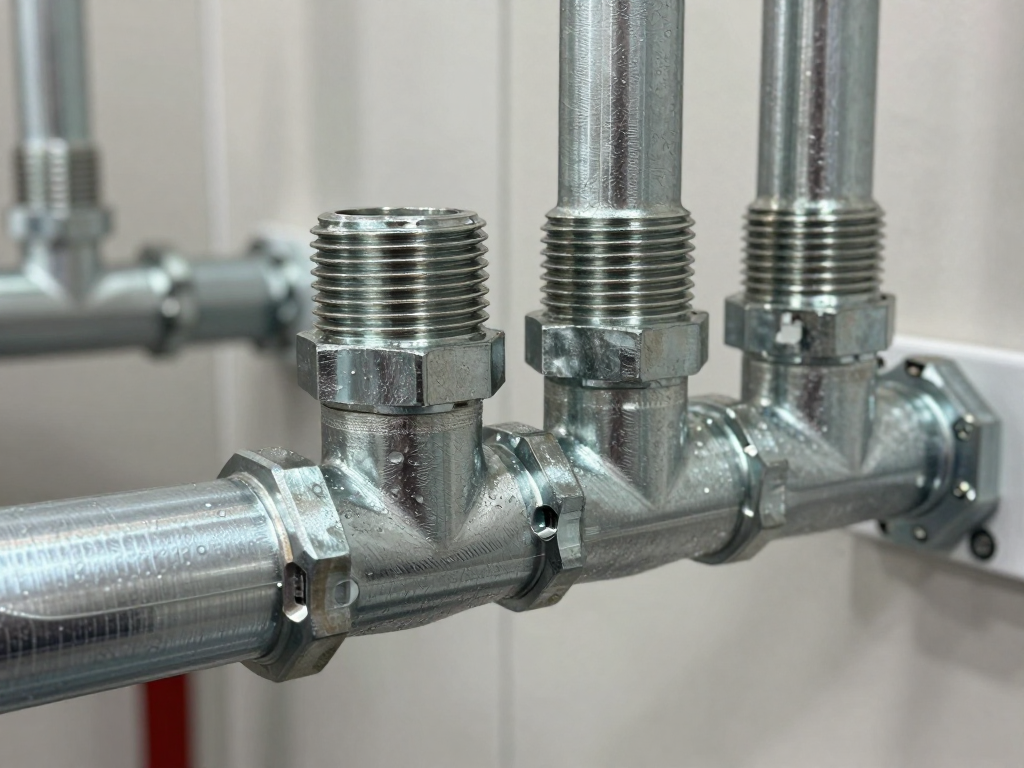

Ends, Threads, and Fittings
- Plain ends: for welding, grooving, or press-fit systems.
- Threaded ends (BSPT / NPT): state the thread standard — BSPT and NPT do not mate.
- Screwed sockets: one coupling per length is the export default.
- Fittings kit: elbows, tees, reducers, caps, unions, flanges — order to the same standard as the pipe.
Common Applications
- Potable water distribution and plumbing.
- Gas conveyance (Heavy class, tested).
- Fire sprinkler and standpipe systems.
- Scaffolding, fencing, greenhouses, handrails.
RFQ Checklist
- Standard + class: ASTM A53 Gr B / EN 10255 Medium / Sch 40…
- Size: DN + OD × wall (mm)
- Coating: pre-galv. (Z-weight) or hot-dip (g/m²)
- Ends: plain / threaded BSPT / NPT + sockets included?
- Length: 6 m standard or cut lengths
- Quantity (lengths or tonnes), test certs, destination / Incoterm
FAQ
Which class for drinking water? EN 10255 Medium or ASTM A53 Sch 40 hot-dip galvanized as a minimum.
BSPT or NPT threads? Match the destination market — Middle East/Asia/Africa mostly BSPT; Americas NPT.
Can GI pipe be welded? Yes, but grind back zinc at the joint, ventilate (zinc fume), and touch up with zinc-rich paint.
Why Source GI Pipe from Yihang Metal
Yihang Metal supplies galvanized steel pipe to ASTM A53, BS 1387 / EN 10255, and GB/T 3091 in pre-galvanized and hot-dip galvanized finishes, plain or threaded ends with sockets, plus matching malleable-iron fittings. We provide mill test certificates, support third-party inspection, and bundle for seaworthy export. Standard sizes typically ship in 20–30 days.
Ready to specify your galvanized pipe? Send us the standard, size, coating, ends, and quantity, and we will confirm mill availability and lead time with a fixed-price quote and MTC. Email [email protected] or use the quote form on this page — our team replies within one business day.
