Steel Scaffold Tube & Coupler Buying Guide: BS 1139 / EN 39 Tubes, Couplers, and Boards for Tube-and-Coupler Scaffolds

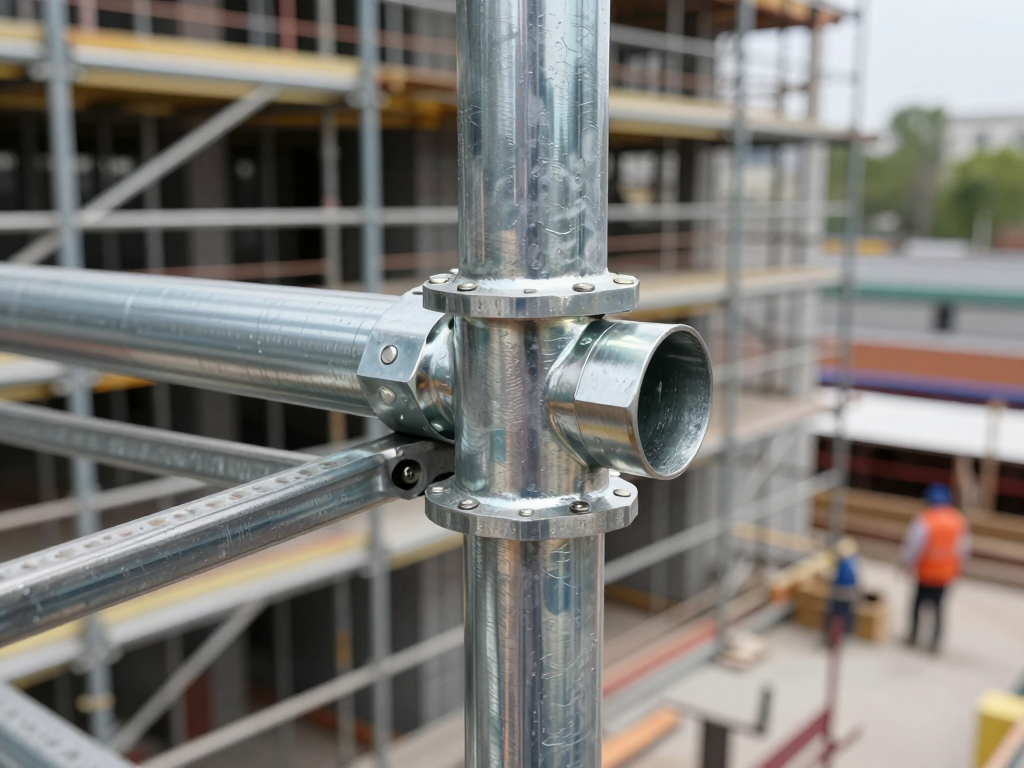

Tube-and-coupler scaffolding — galvanized steel tubes joined by right-angle, swivel, and sleeve couplers — still builds the working platforms on most construction, shipyard, and industrial-maintenance sites. Specify the wrong tube grade, wall thickness, or coupler class and the scaffold fails the site inspection, the tubes ovalize in the coupler grip, or a winter sea shipment arrives rusted.
This guide covers the tube, the coupler family, boards, standards, and a full RFQ checklist.
Tube Specification
- Outside diameter: 48.3 mm (standard).
- Wall: 3.2 mm (Type 3) or 4.0 mm (Type 4); 3.2 mm suits most work.
- Steel: S235GT / S355, hot-rolled or cold-formed ERW.
- Finish: hot-dip galvanized for outdoor; pre-galv. for sheltered.
- Lengths: 1–6 m in 0.5 m steps; 6 m most common.
Coupler Family
| Coupler | Join | Use |
|---|---|---|
| Right-angle (double) | Tube to tube at 90° | Ledgers to standards |
| Swivel | Any angle | Diagonal bracing |
| Sleeve (end-to-end) | Tube extension | Joining lengths |
| Putlog / single | Tube to fixed point | Putlog transoms |
| Board-retaining / toe-board clip | Boards | Platform edges |
Couplers come in pressed steel or forged/drop-forged; forged costs more but resists site abuse and slip testing better.
Pressed vs Forged Couplers
| Aspect | Pressed | Forged |
|---|---|---|
| Strength / slip | Adequate | Higher |
| Durability | Good | Best |
| Cost | Lower | Higher |
| Use | General building | Heavy / industrial / hire fleets |
Standards Buyers Quote
- BS 1139 / EN 39: scaffold tubes.
- EN 74: couplers (classes A and B; B is stronger).
- EN 12811: scaffold performance and design.
- BS 2482 / EN 13986: timber and board references.
Boards and Accessories
- Steel boards / battens: galvanized planks with hooks.
- Base jacks and base plates: leveling and load spread.
- Ladders, guardrails, toe boards: platform safety kit.
- Ties and anchors: scaffold-to-structure fixings.
Common Applications
- Building construction and facade repair.
- Shipyard staging and hull access.
- Plant shutdown and maintenance access.
- Events, grandstands, temporary works.
RFQ Checklist
- Tube: OD 48.3 × wall (3.2 / 4.0), standard, finish
- Coupler types + quantities; pressed or forged; EN 74 class
- Boards, jacks, plates, ladders needed
- Total tonnage and packing (bundles / stillages)
- Test certificates and inspection
- Destination port and Incoterm
FAQ
3.2 or 4.0 mm wall? 3.2 mm (Type 3) for general scaffolds; 4.0 mm (Type 4) for heavy loading and hire fleets.
Forged worth it? Yes for reuse cycles and slip-critical joints; pressed is fine for one-project builds.
Pre-galv. or HDG? HDG for outdoor/seaside; pre-galv. only under cover.
