Galvanized Steel Conduit & EMT Pipe Buying Guide: How to Specify Electrical Metallic Tubing for Buildings and Industrial Plants

By

yihang

in

Galvanized Steel Conduit & EMT Pipe Buying Guide: How to Specify Electrical Metallic Tubing for Buildings and Industrial Plants

Every commercial and industrial building hides its power and data cables inside steel conduit — rigid steel tubing that protects wires from impact, moisture, and electromagnetic interference. The most common lightweight version is EMT (Electrical Metallic Tubing), a thin-wall galvanized steel tube. Specify the wrong wall thickness, standard, or coupling and your installation fails inspection, corrodes in a damp plant, or simply will not thread together on site.

This guide compares EMT, IMC, and rigid conduit, the standards buyers quote, and the exact specs to put in your RFQ.

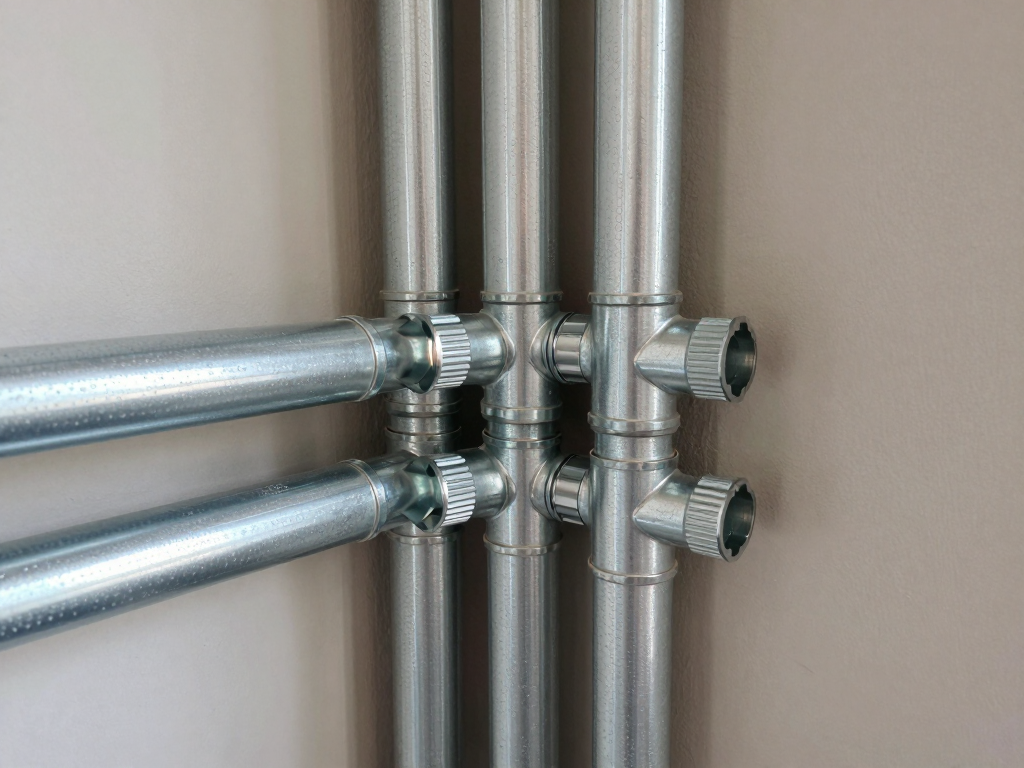

Galvanized steel conduit installed on a building wall
Galvanized steel conduit run along a wall with couplings and connectors — the joint integrity decides whether the system passes inspection.

What Is Steel Conduit / EMT?

Conduit is a tube through which electrical wires are pulled. EMT is a lightweight, thin-wall, galvanized steel tube joined with set-screw or compression couplings — no threading required. IMC is thicker-wall and stronger; RMC (rigid metal conduit) is heaviest and used where maximum protection is needed. All three are normally hot-dip or pre-galvanized for corrosion resistance.

Conduit Types Compared

Type Wall Join Method Use
EMT Thin Set-screw / compression coupling Indoor dry, commercial, light industrial
IMC Medium Threaded Outdoor, heavier duty
RMC Heavy Threaded Harsh, high-impact, hazardous areas
Pre-galv. steel pipe Medium Threaded General wiring, low cost

Standards Buyers Quote

  • UL 797 (USA): EMT; UL 6 for RMC; UL 1242 for IMC.
  • BS 4568 (UK): light, medium, heavy class conduit.
  • EN 61386 (Europe): classification by compression, impact, bend.
  • AS/NZS 2053 (Australia/NZ): conduits and fittings.
  • ASTM A53 / A500: generic steel pipe sometimes used as conduit.

State the standard so the mill rolls to the correct outside diameter and wall schedule.

Size and Wall Thickness

EMT is sized by nominal trade size from 1/2″ to 4″ (16–110 mm OD). BS 4568 uses class light / medium / heavy for wall thickness. Confirm:

  • Outside diameter and length (usual 3.05 m / 10 ft, or 6 m).
  • Wall class (light / medium / heavy) or schedule.
  • Zinc coating: pre-galvanized (ZincElectro) vs hot-dip galvanized (HDG).

Surface: Pre-Galvanized vs Hot-Dip Galvanized

For plants, carwashes, and outdoor runs, specify hot-dip galvanized even on EMT-class tube.

Fittings and Couplings

Conduit is only as good as its fittings. For a complete order, also specify:

  • Set-screw / compression couplings and connectors (EMT).
  • Elbows (90°, 45°) — factory-bent or site-bent.
  • Threaded couplings and unions (IMC / RMC).
  • Boxes, bushings, and straps / saddles.

Buy fittings to the same standard as the tube so they seat correctly.

Common Applications

  • Commercial buildings: walls, ceilings, risers.
  • Industrial plants: machinery power, control wiring.
  • Infrastructure: stations, tunnels, utilities.
  • Renovation: retrofitting older conduit systems.

RFQ Checklist: What to Send Your Supplier

  • Type: EMT / IMC / RMC / galvanized pipe
  • Standard: UL 797 / BS 4568 / EN 61386 / AS/NZS 2053
  • Trade size and length
  • Wall class or schedule
  • Finish: pre-galv. or hot-dip galvanized
  • Fittings needed (couplings, elbows, connectors)
  • Quantity (lengths or tonnes) and packing
  • Destination port and Incoterm

FAQ

EMT or rigid for an outdoor plant? Use EMT only in dry indoor areas; choose IMC or HDG rigid conduit outdoors and in damp locations.

Can I thread EMT? Normally no — EMT uses slip couplings. If you need threads, specify IMC/RMC.

Pre-galv. or HDG for coastal? HDG; pre-galv. cut edges rust first in salt air.

Why Source Conduit from Yihang Metal

Yihang Metal supplies galvanized steel conduit and EMT to UL 797, BS 4568, and EN 61386 in trade sizes 1/2″–4″, pre-galvanized or hot-dip galvanized, with matching couplings, elbows, and connectors. We provide mill test certificates, support third-party inspection, and pack for seaworthy export. Standard sizes typically ship in 20–30 days for full containers.

Ready to specify your steel conduit? Send us the type, standard, trade size, wall class, and finish, and we will confirm availability and lead time with a fixed-price quote and MTC. Email [email protected] or use the quote form on this page — our team replies within one business day.

More Articles

Finish Coating Corrosion Cost
Pre-galvanized (ZincElectro) Zinc on strip before forming Good (dry indoor) Lower
Hot-dip galvanized (HDG) Zinc after forming Better (outdoor, damp) Higher
